Steel Warehouse Frame Model

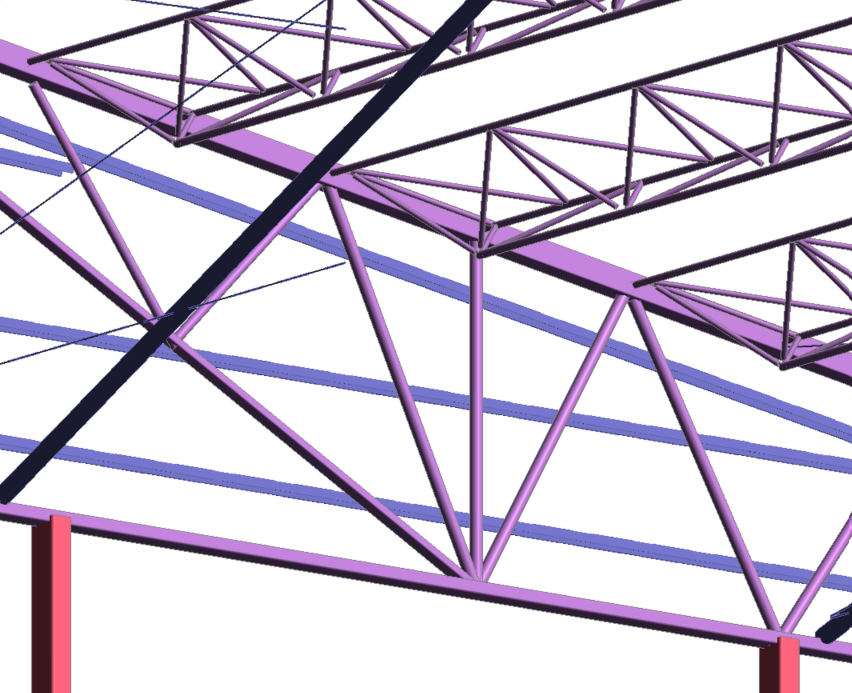

This 3D structural model represents a large-span industrial warehouse framework generated using Building Information Modeling (BIM) workflows in Autodesk Revit, converted directly from CAD/DXF reference drawings. Developed to Level of Development (LOD) 300, the elements are modeled with precise quantity, size, shape, location, and orientation suitable for detailed design coordination, spatial analysis, and structural documentation.
